SAM80-H H8X PCB [PREORDER]

SAM80-H H8X PCB [PREORDER]

€36,00
€36,00
Sale Sold out
Shipping calculated at checkout.

Preorder Shipping ETA: End June 2025

Low stock

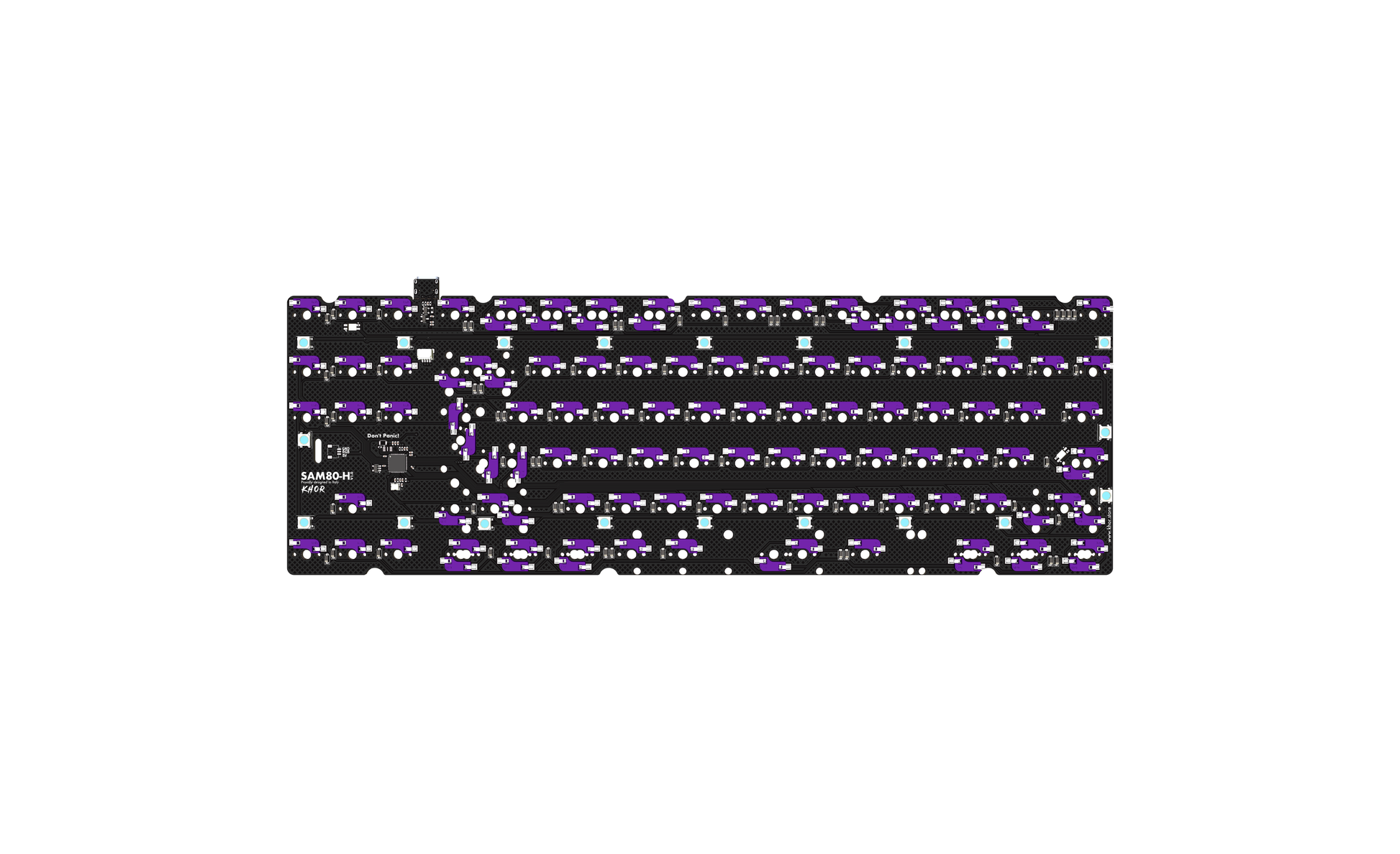

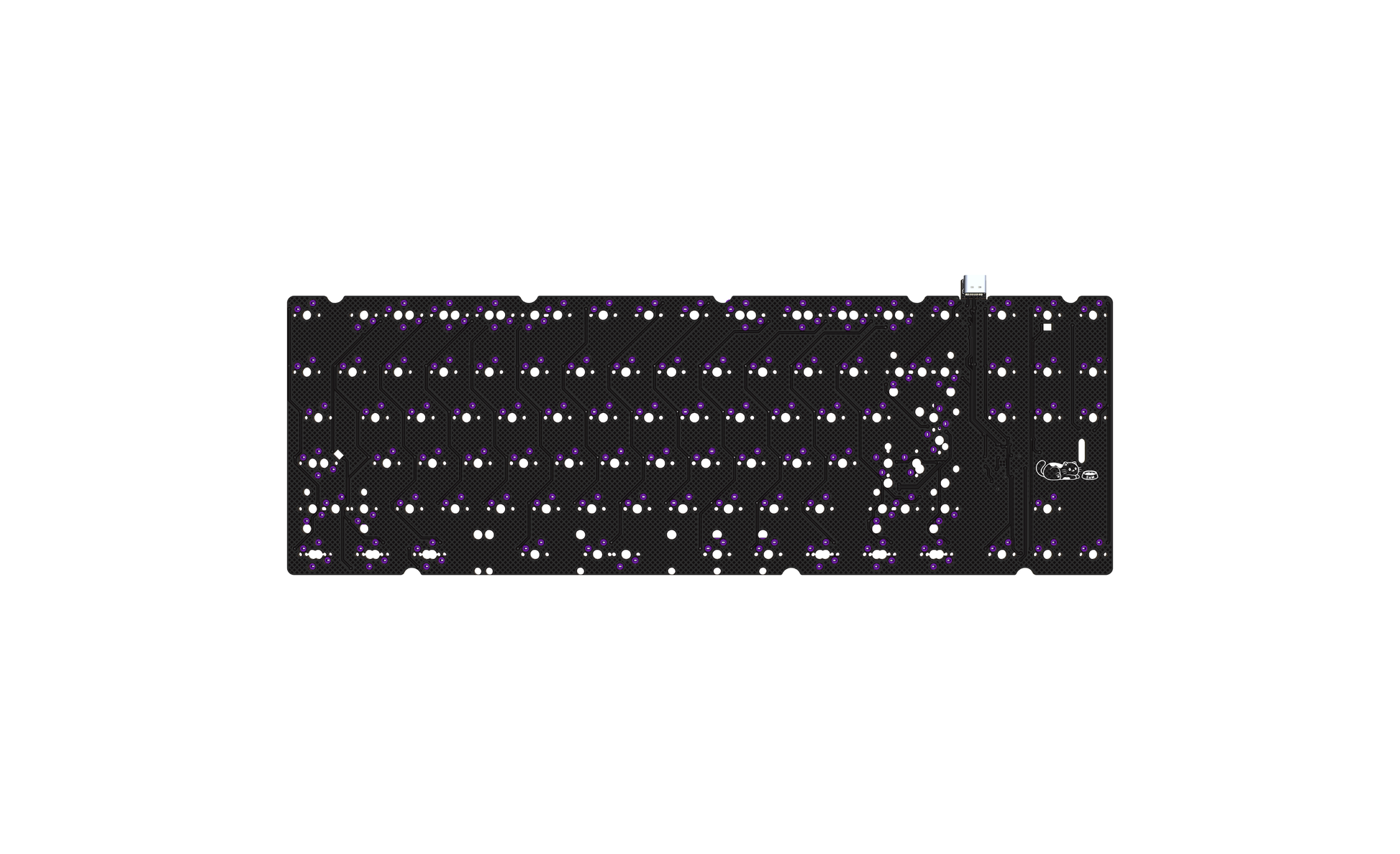

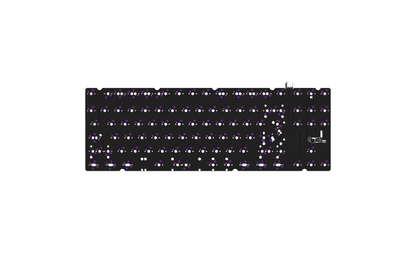

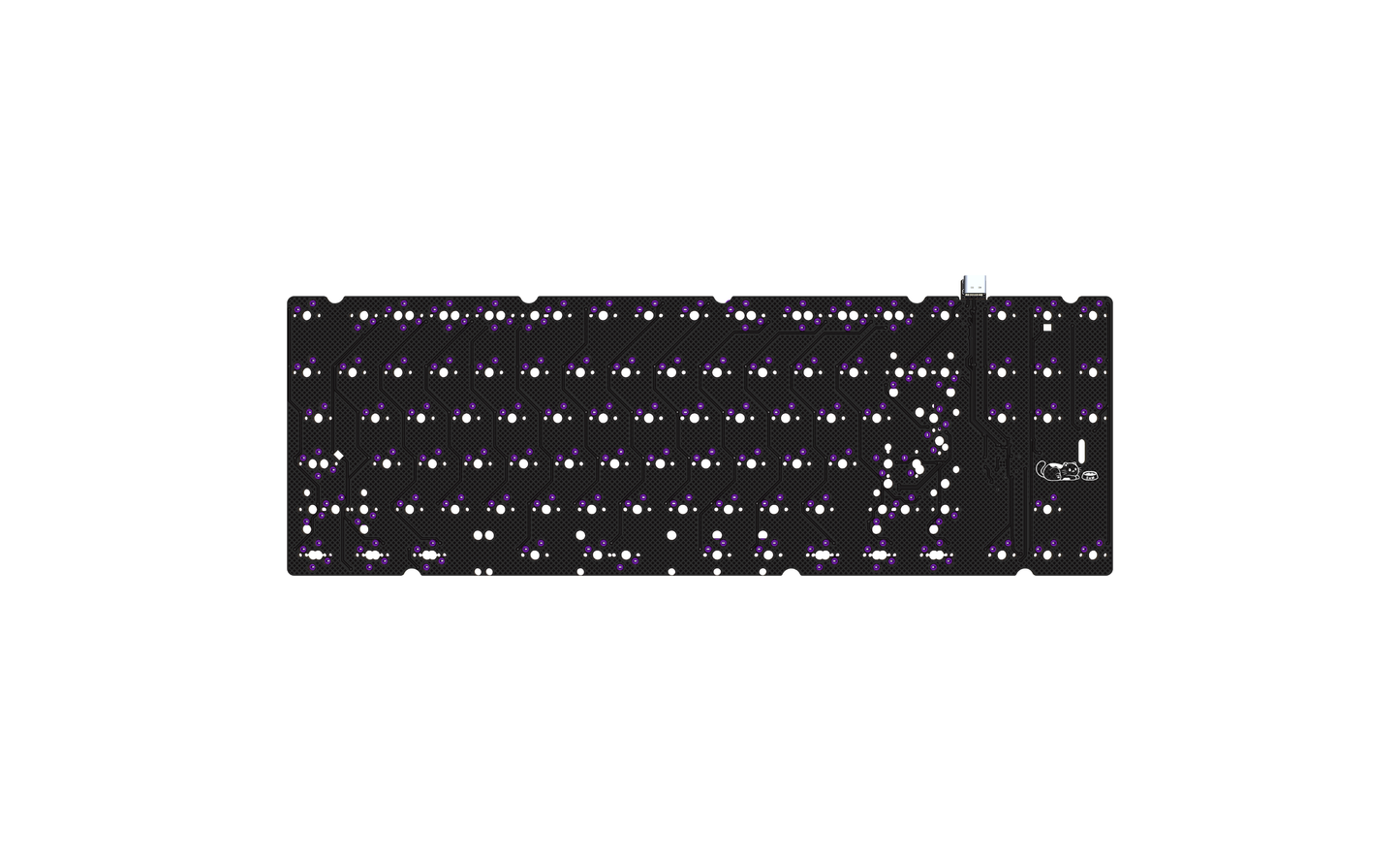

TKL Hotswap PCB with multiple layout, supporting both H87 and H88 F-Row and break-away USB-C and JST DB connection, powered by ARM based RP2040 MCU.

View full details

DETAILS

80% Hotswap PCB Powered by ARM based RP2040

This PCB supports two types of connection:

  • External Unified-compliant DB with 4-Pin JST unified compliant DB
  • USB-C directly soldered on the board, positioned on top, can be removed for DB connection

Specs:

  • 1.6mm FR4
  • Black solder mask
  • Purple Durock Sockets
  • Indicator RGB LEDs on CAPS-LOCK & ScrollLock
  • Underglow (if choosen)
  • Lead-Free
  • Sam 😺

Multiple Layout support:

  • Standard|split backspace|1U+Knob
  • Standard|split R-Shift
  • Standard|split L-Shift
  • ANSI|ISO enter
  • 6.25U|7U|3-1-3 split spacebars
  • F12/F13

CONTENTS

  • 1x SAM80-S PCB with/without USB-miniB

ORDER COMBINATION

This is a preorder, any other item added in the order will be shipped from the latest preorder ETA.
Other preorder items or any in-stock can be added with this product

CHANGELOG

  • 26 May 2025: Production will start soon, preorders open.
