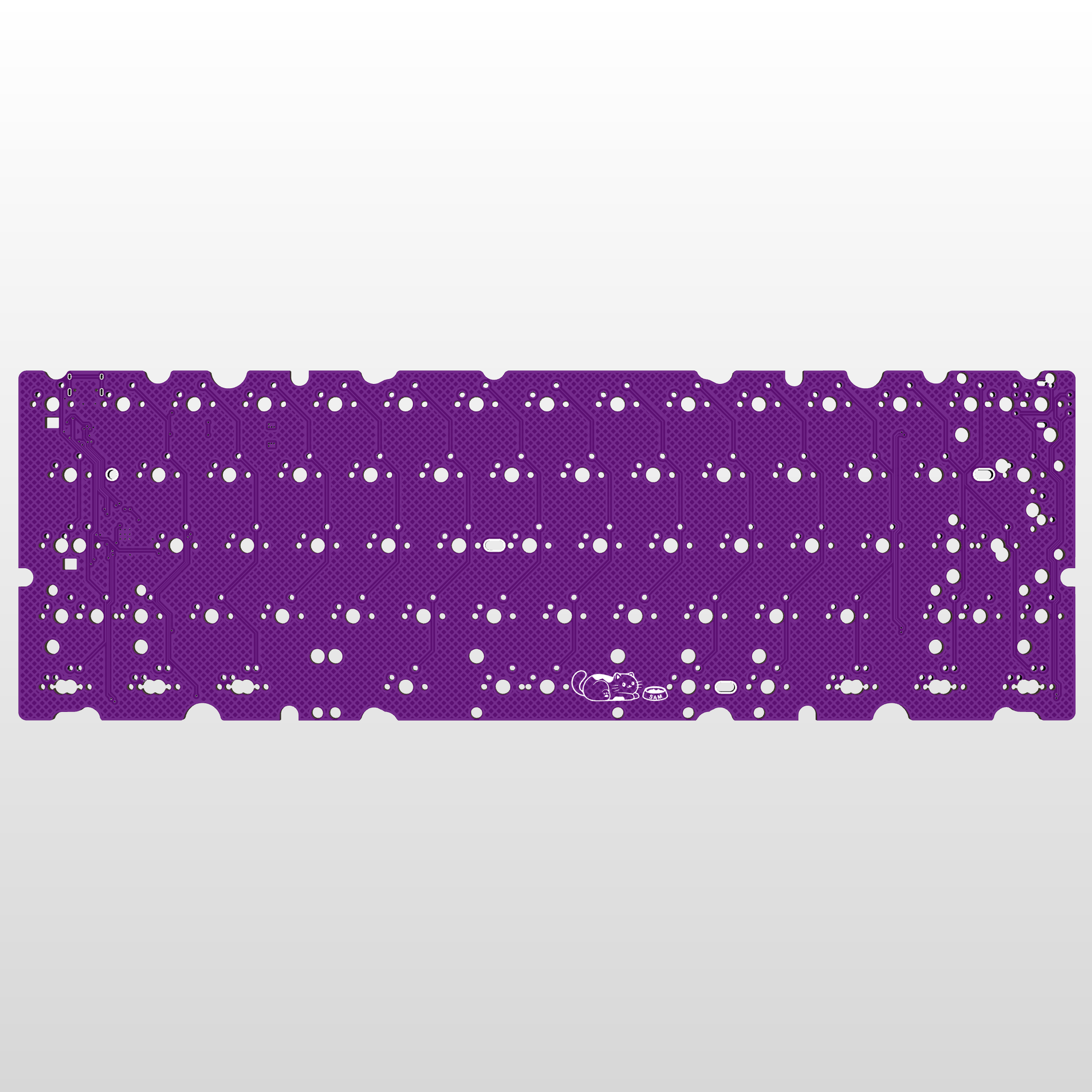

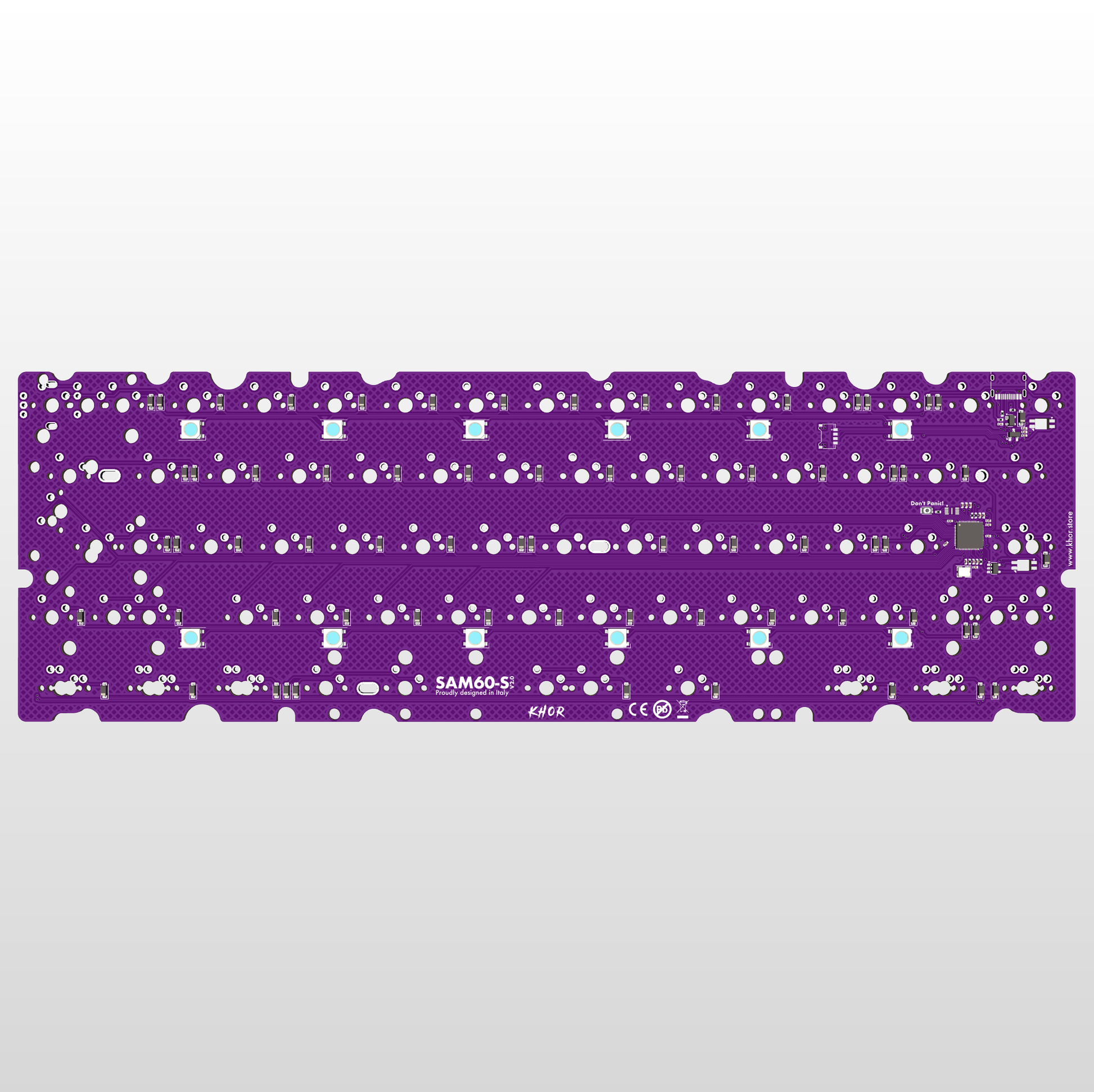

SAM60-S V2.0 PCB

60% Solder PCB Powered by ARM based RP2040

This PCB supports different mounting systems:

• Tray mount
• Top mount
• O-Ring mount (check if half cut holes are right for your board)

This PCB supports two types of connection:

• External Unified-compliant DB with Molex PicoEZ (can be connected to an older C3 Unifying with a compliant Molex-to-JST cable)
• USB-C directly soldered on the board, positioned on typical "Tofu60"

Specs:

• 1.6mm FR4
• Purple solder mask
• Support for standard clip-in and screw-in stabilizers (better use clip-in for O-ring boards)
• Indicator RGB LEDs on CAPS-LOCK & ESC
• Underglow (if choosen)
• Lead-Free
• Sam 😺

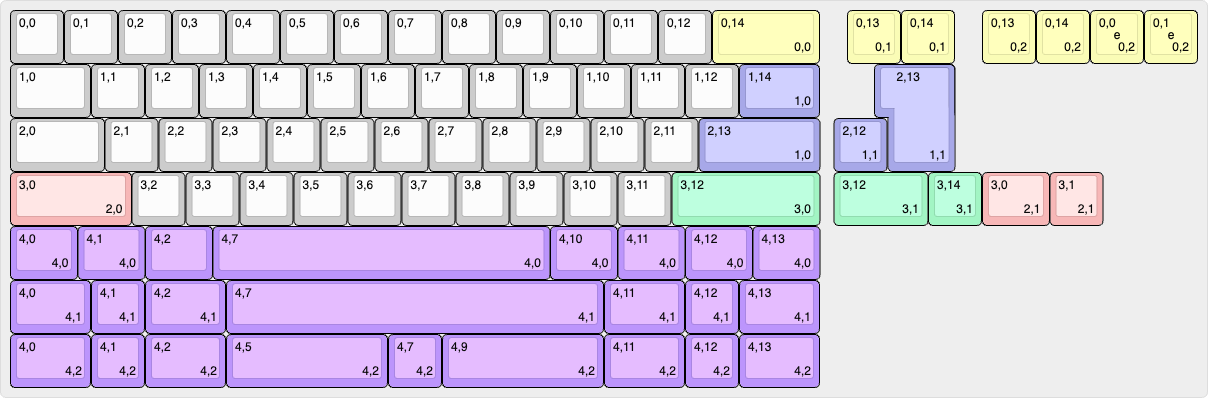

Multiple Layout support:

• Standard|split backspace|1U+Knob
• Standard|split R-Shift
• Standard|split L-Shift
• ANSI|ISO enter
• 6.25U|7U|3-1-3 split spacebars


  MOLEX OPTION REQUIRES A DAUGHTERBOARD AND A CABLE IN ORDER TO WORK

• 1x SAM60-S PCB with/without USB-C

This is a preorder, any other item added in the order will be shipped from the latest preorder ETA.
Other preorder items or any in-stock can be added with this product

• 14 March 2025: prototypes arrived, 90% working, just need few fixes
