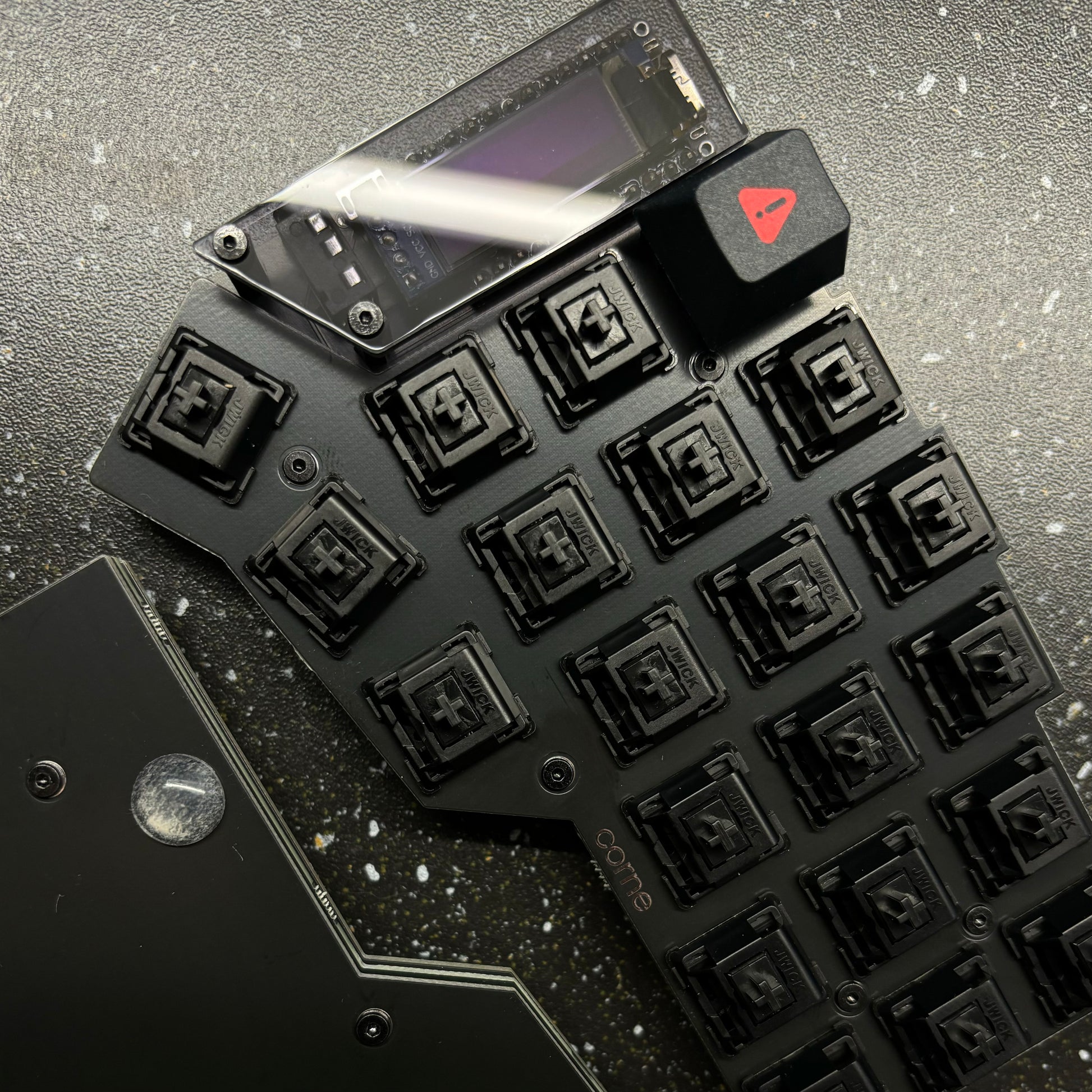

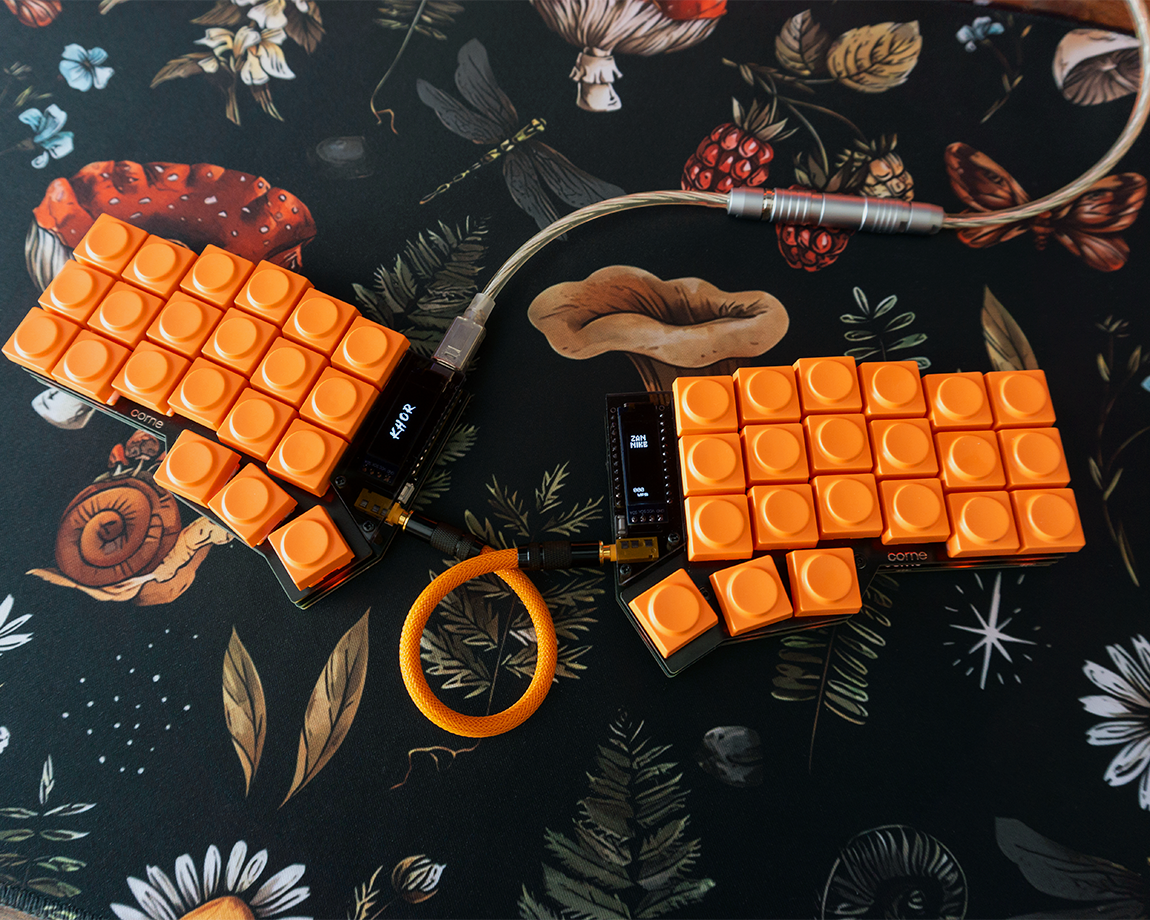

Corne Keyboard V3.0 RGB

Corne is an opensource, layered split keyboard kit.
Featuring 42 keys and 2 oled display and RGB light. Acrylic version features a tenting system with Screws.

You can find source files HERE

ALL KIT DO -NOT- INCLUDE AND REQUIRE:

• 1x USB C Cable
• 1x TRRS interconnection Cable
• 42x MX Switches (5x 10pcs kits)
• 42x Keycaps

ESSENTIAL:

• 2x PCB
• 2x FR4 plates
• 2x FR4 bottoms
• 10x 8mm brass M2 standoffs
• 20x 4mm M2 hex screws
• 42x Hot Swap Sockets
• 42x 1N4148W SMD diodes
• 2x Reset buttons
• 2x TRRS Female connector
• If selected: 12x WS2812 5050 + 42x sk6812mini-e RGB LEDs

DIY:

• 2x PCB
• 2x FR4 plates
• 2x FR4 bottoms
• 10x 8mm brass M2 standoffs
• 20x 4mm M2 hex screws
• 42x Hot Swap Sockets
• 42x 1N4148W SMD diodes
• 2x Reset buttons
• 2x TRRS Female connector
• 2x RP2040 Helios Microcontrollers
• 4x 12pin headers
• 2x 0,91" white on black OLED display

PRESOLDERED (*parts are already soldered on the board):

• 2x PCB
• 2x FR4 plates
• 2x FR4 bottoms
• 10x 8mm brass M2 standoffs
• 20x 4mm M2 hex screws
• *42x Hot Swap Sockets
• *42x 1N4148W SMD diodes
• *2x Reset buttons
• *2x TRRS Female connector
• *2x RP2040 Helios Microcontrollers
• *4x 12pin headers
• *2x 0,91" white on black OLED display
