Khor

SAM80-H

SAM80-H

€35,00
€35,00
Sale Sold out
Shipping calculated at checkout.

Out of stock

TKL Hotswap PCB with multiple layout, supporting both H87 and H88 F-Row and break-away USB-C and JST DB connection, powered by ARM based RP2040 MCU.





View full details

DETAILS

80% Hotswap PCB Powered by ARM based RP2040

This PCB supports two types of connection:

  • External Unified-compliant DB with 4-Pin JST unified compliant DB
  • USB-C directly soldered on the board, positioned on top, can be removed for DB connection
  • USB-C can be placed in top or bottom side of the PCB for multiple keyboard support (only one side at a time)
  • The unused side of the USB-C Footprint should always be covered by the tape to reduce any shorting.

Specs:

  • 1.6mm FR4
  • Purple solder mask
  • Purple MX Sockets
  • Indicator RGB LEDs on CAPS-LOCK & ScrollLock
  • Underglow (if chosen)
  • Arrow Cluster RGB LEDs (if chosen)
  • Lead-Free
  • Sam 😺

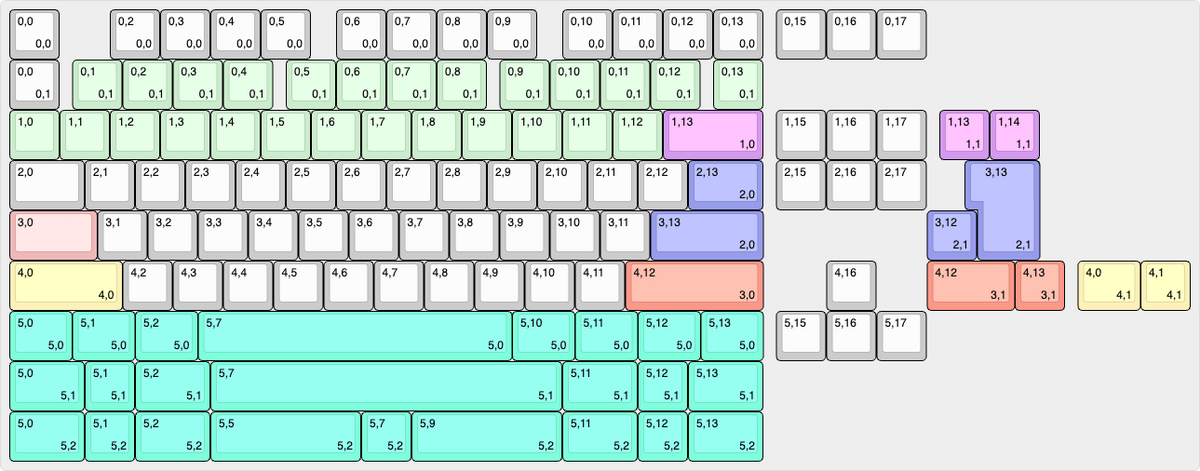

Multiple Layout support:

  • Standard|split backspace|1U+Knob
  • Standard|split R-Shift
  • Standard|split L-Shift
  • ANSI|ISO enter
  • 6.25U|7U|3-1-3 split spacebars
  • F12/F13

V1.1 supports Space80 R1 or any keyboard with bottom-side USB-C connection. Arrow cluster RGB has been designed with the Space80 R1 positioning but works on any TKL with fArrow cluster badge or similar and a proper diffuser.

Arrow cluster RGB can be used without the underglow LEDs by joining the BYP bridge

CONTENTS

  • 1x SAM80-H PCB

ORDER COMBINATION

Any other item added in the order will be shipped from the latest preorder ETA.
Other preorder items or any in-stock can be added with this product
