KHOR

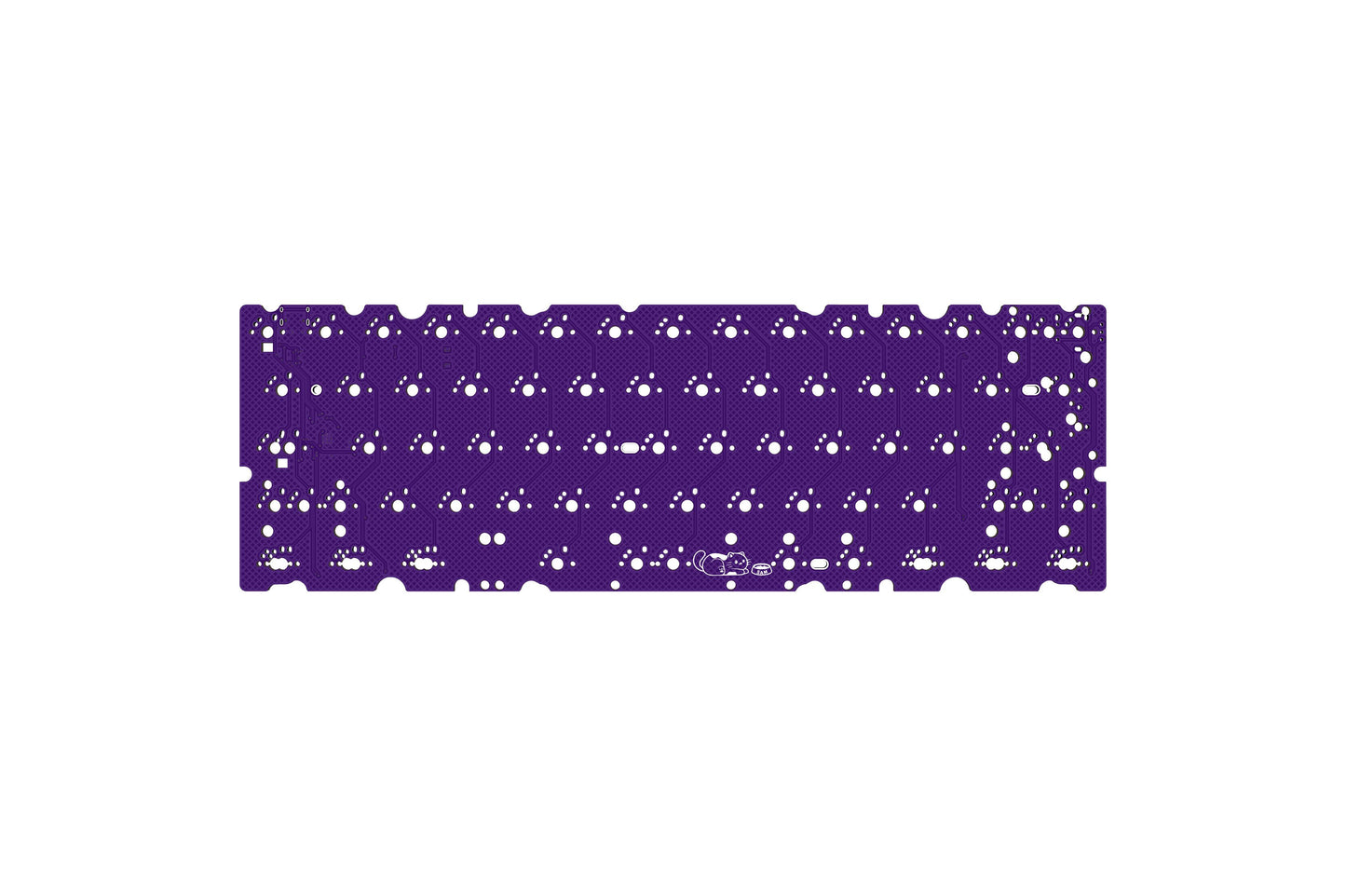

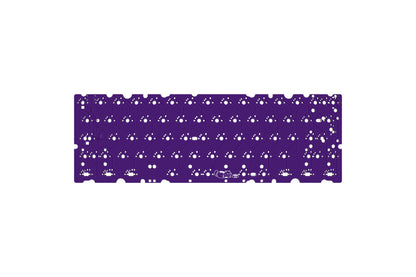

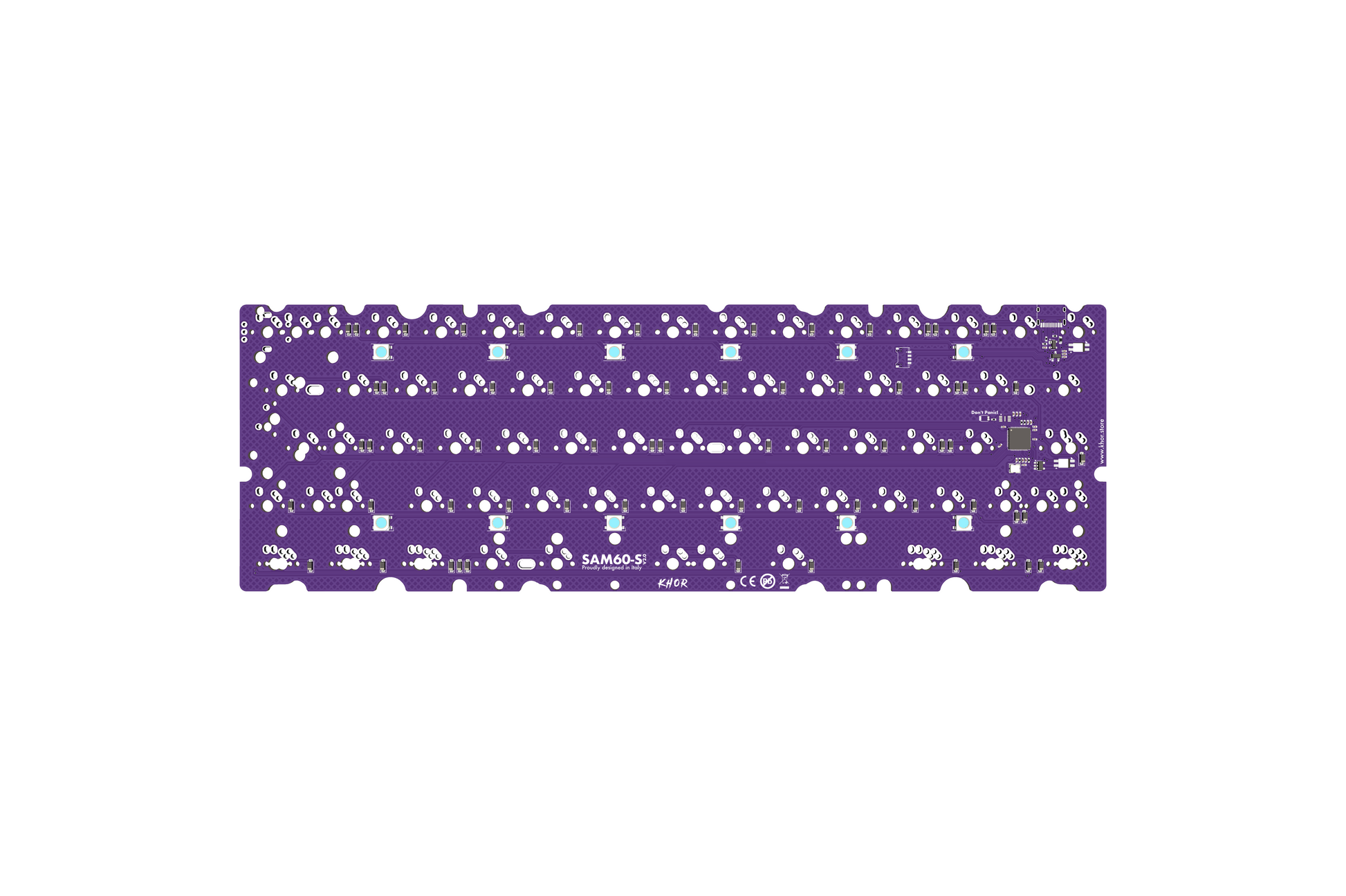

SAM60-S PCB

SAM60-S PCB

Regular price €29,00 EUR
Regular price Sale price €29,00 EUR
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

60% Solder PCB with multiple O-Ring styles support, powered by ARM based RP2040 MCU

View full details

Collapsible content

DETAILS

60% Solder PCB Powered by ARM based RP2040

This PCB supports different mounting systems:

  • Tray mount
  • Top mount
  • O-Ring mount (check if half cut holes are right for your board)

This PCB supports two types of connection:

  • External Daughter board (Ai03 complian pinout) with Molex PicoEZ (can be connected to an older C3 Unifying with a complian Molex-to-JST cable)
  • USB-C directly soldered on the board, positioned on typical "Tofu60"

Specs:

  • 1.6mm FR4
  • Purple solder mask
  • Support for standard clip-in and screw-in stabilizers (better use clip-in for O-ring boards)
  • RGB LED on CAPS-LOCK position, centered to be functional on both stepped and normal keycaps
  • Lead-Free
  • Sam 😺

This PCB is proudly designed in Italy by ZanniKB

MOLEX OPTION REQUIRES A
DAUGHTERBOARD AND A CABLE IN ORDER TO WORK

CONTENTS

  • 1x SAM60-S PCB with/without USB-C

ORDER COMBINATION

This is a preorder, any other item added in the order will be shipped from the latest preorder ETA.
Other preorder items or any in-stock can be added with this product

CHANGELOG

  • 29/05/2024: Preorder Open
  • 15/06/2024: PCBs are INSTOCK
