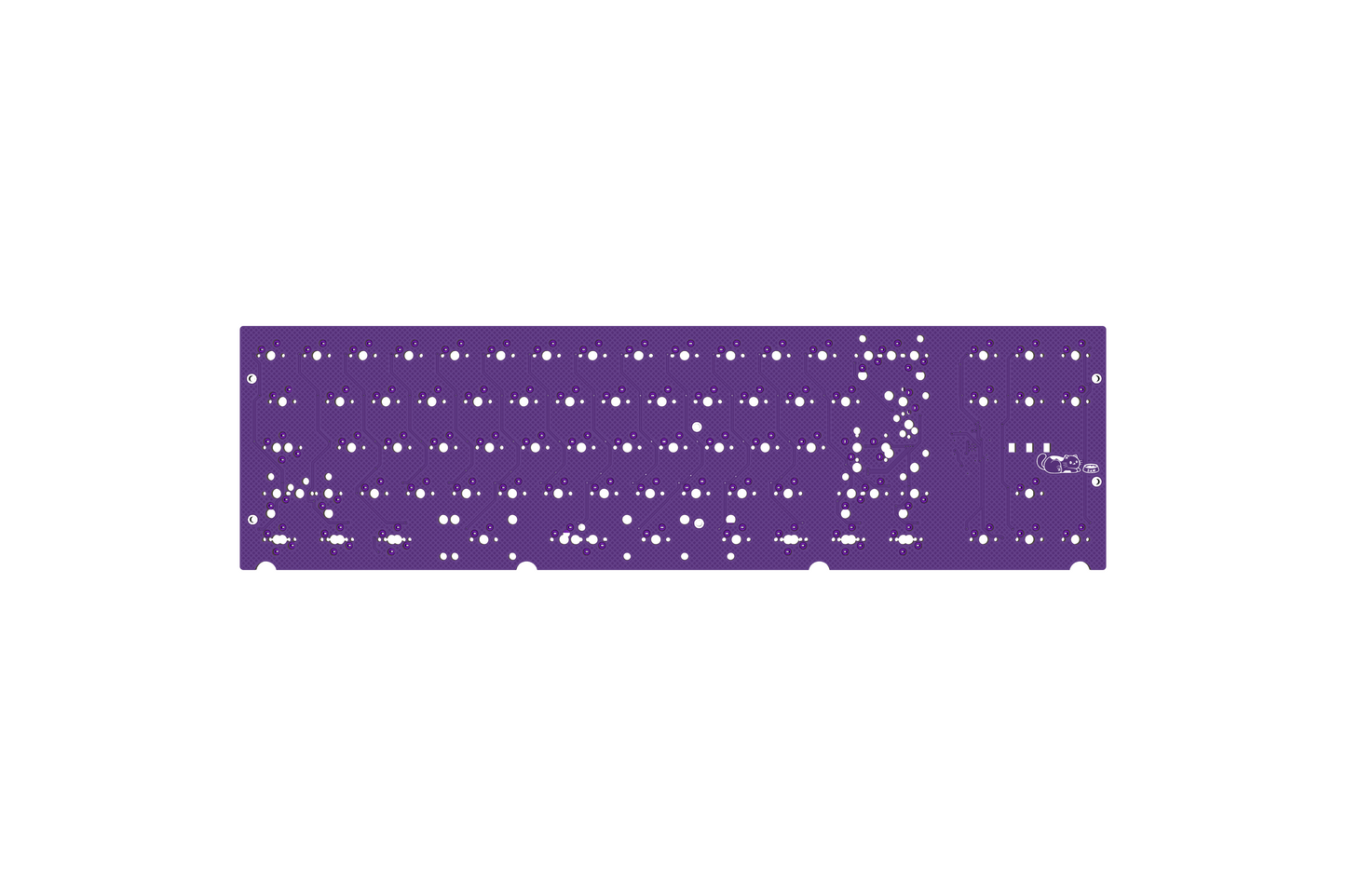

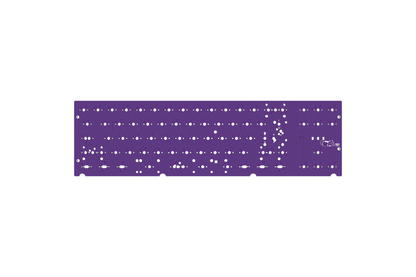

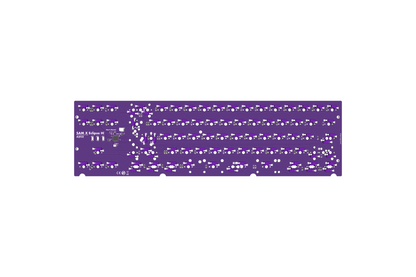

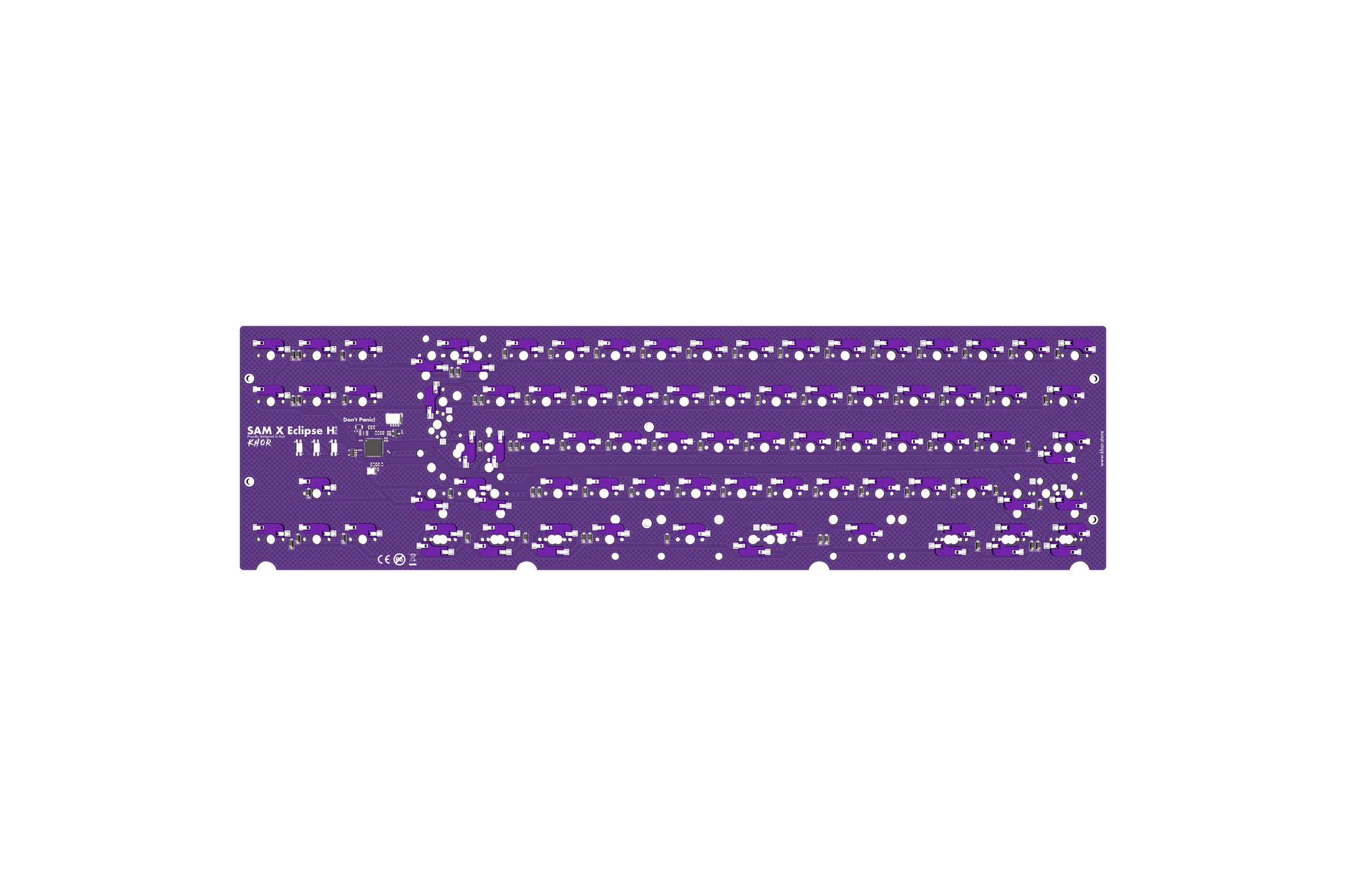

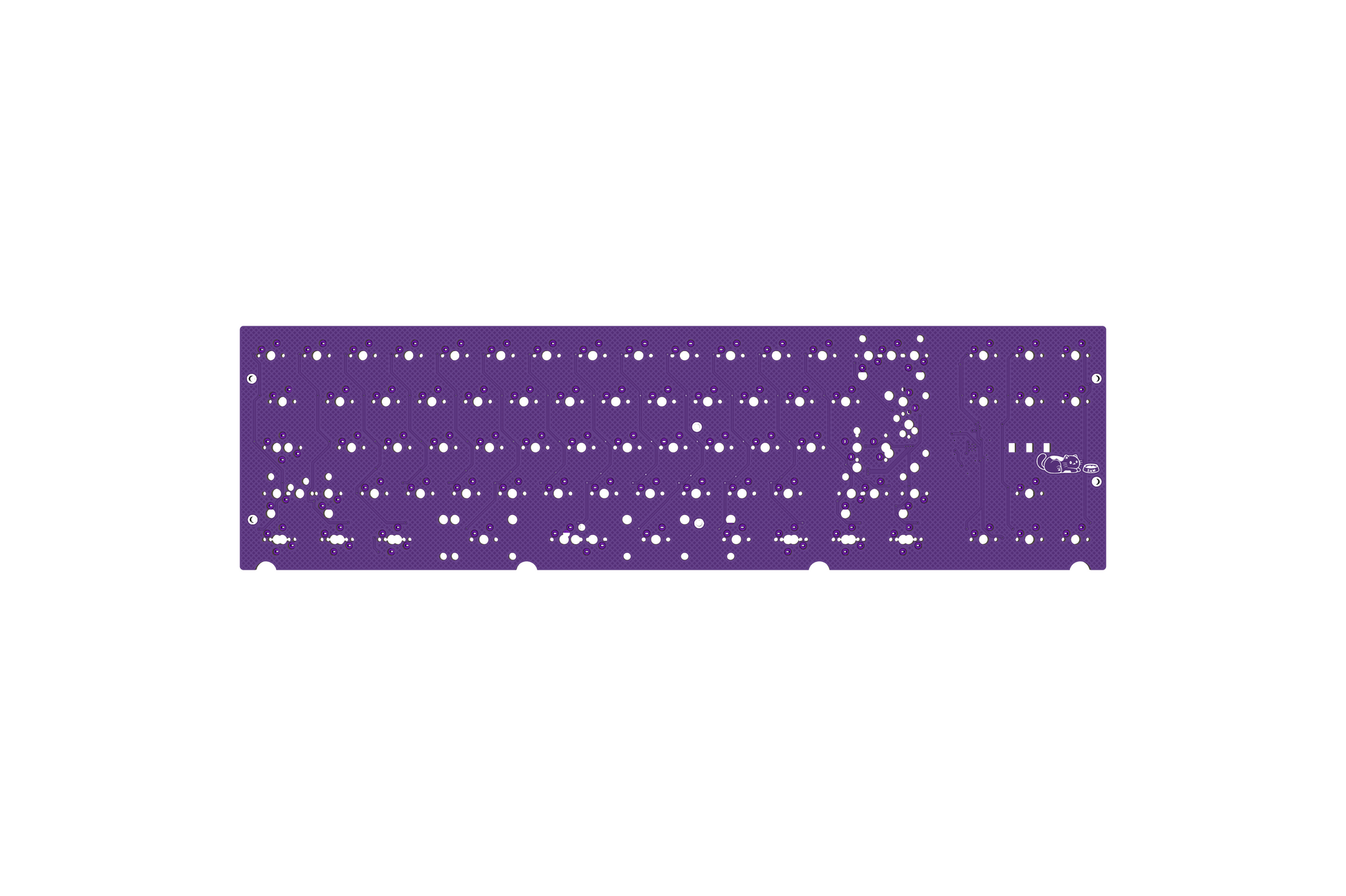

SAM X Eclipse H PCB

FRL Hotswap PCB Powered by ARM based RP2040 compatible with Eclipse keyboard.

This PCB is not an official product from the Eclipse GroupBuy instead it's a third party replacement for those who own an Eclipse affected with dead or missing original PCB. The entire design of the PCB was made from scratch based on Khor's SAM architecture based on ARM RP2040 and Eclipse's plate files for the technical drawings and dimensions.

A thank goes to Snurrenbassen for approving and appreciating this side project, in hope to save as many Eclispse keyboards out there <3

Detailed info, firmware and opensource VIAL folder on docs page

Specs:

• 1.6mm FR4
• Purple solder mask
• Purple Sockets
• 3x Indicators RGB LEDs on arrow cluster
• Lead-Free
• SAM 😺

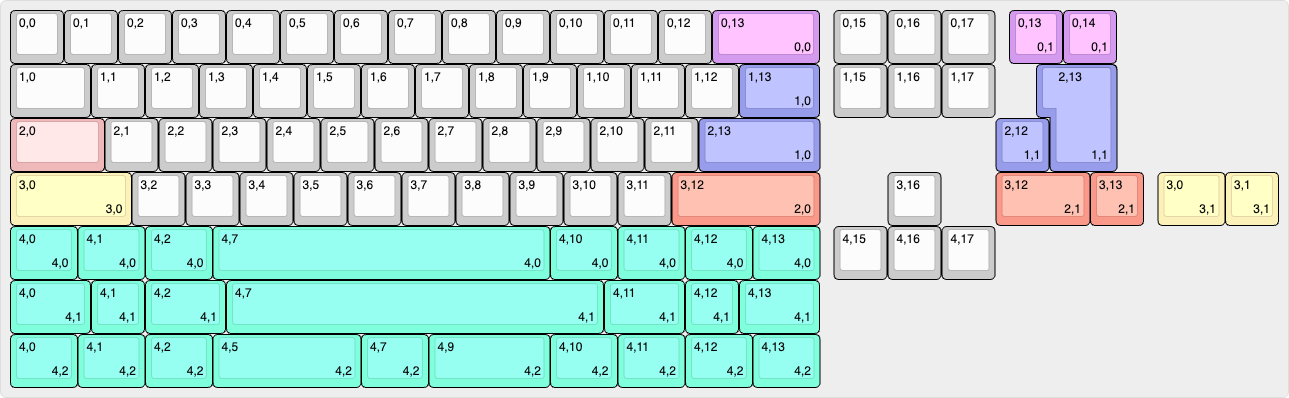

Multiple Layout support:

• Standard|split backspace
• Standard|split R-Shift
• Standard|split L-Shift
• ANSI|ISO enter
• 6.25U|7U|split spacebars


• 1x SAM80-S PCB with/without USB-miniB

Any other item added in the order will be shipped from the latest preorder ETA.
Other preorder items or any in-stock can be added with this product.
