Corne V3.0

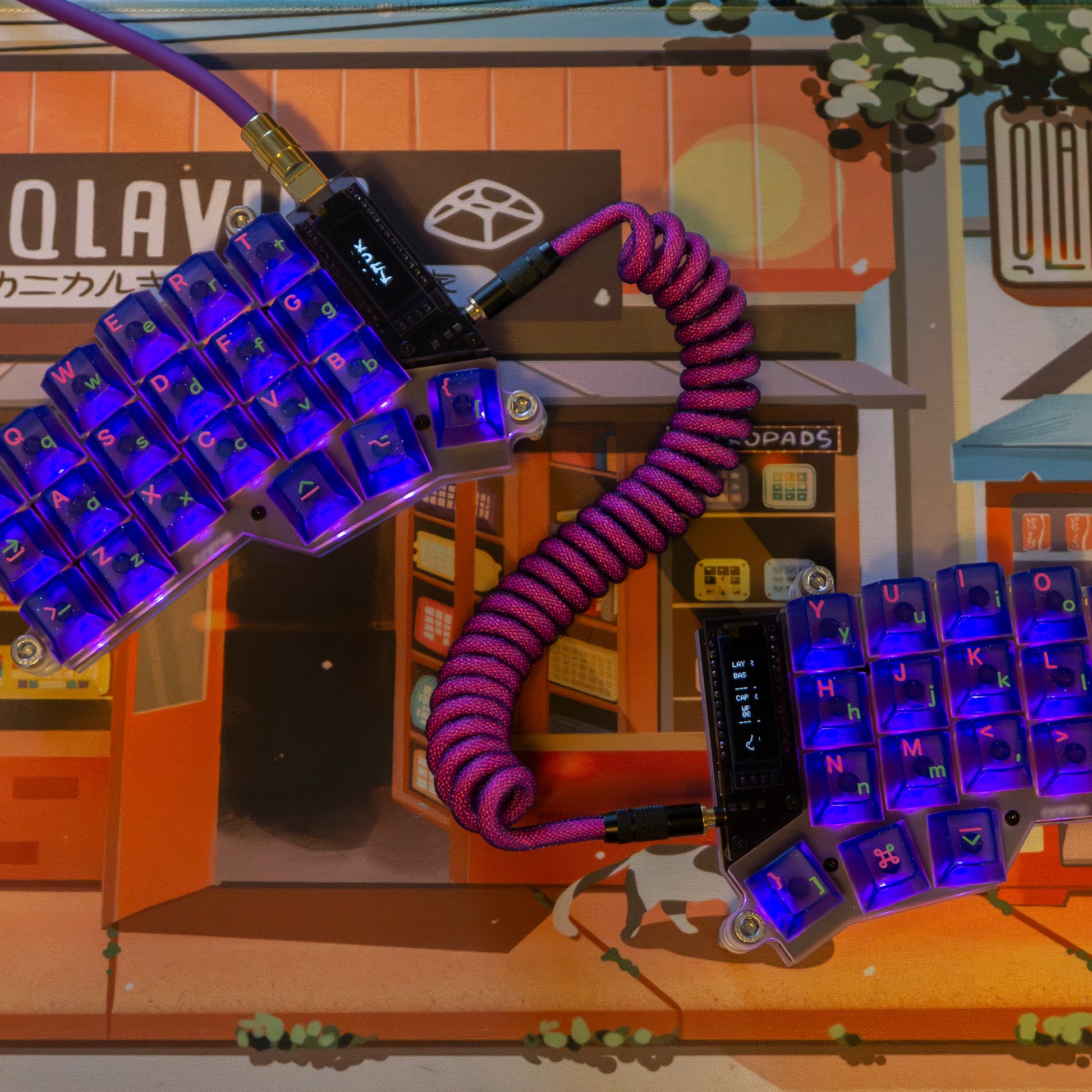

Corne is an opensource, layered split keyboard kit.
Featuring 42 keys and 2 oled display and RGB light. Acrylic version features a tenting system with Screws.

You can find source files HERE

ALL KIT DO -NOT- INCLUDE AND REQUIRE:

• 1x USB C Cable
• 42x MX Switches
• 42x Keycaps
• 1x TRRS Cable (wired only)

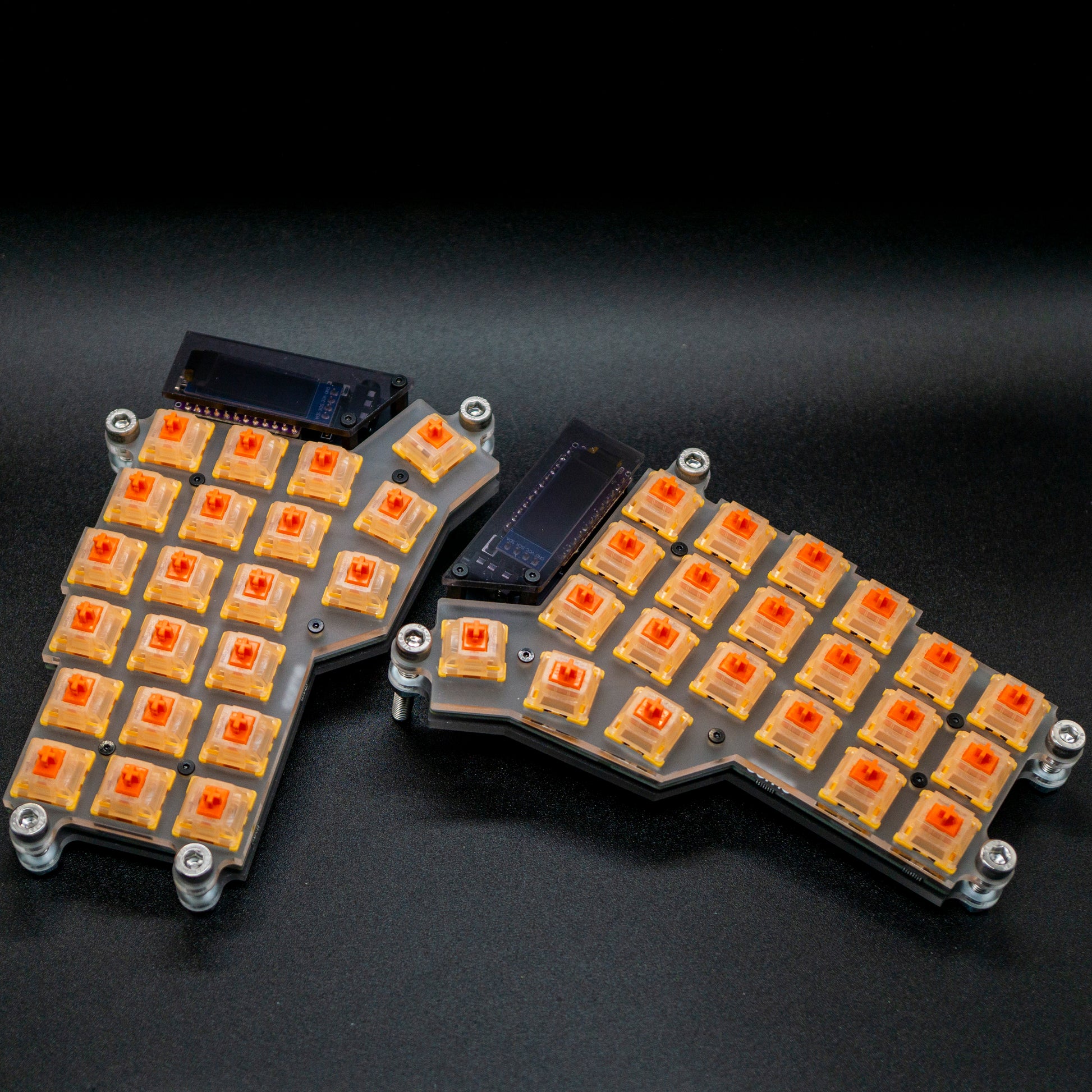

RP2040 Wired Acrylic:

• 2x PCB
• 2x Acrylic plates
• 2x Acrylic bottoms
• 10x 6mm brass M2 standoffs
• 20x 6mm M2 hex screws
• 42x Hot Swap Sockets
• 42x 1N4148W SMD diodes
• 2x Reset buttons
• 2x TRRS Female connector
• 2x RP2040 Microcontrollers (microSAM)
• 4x 12pin headers
• 2x 0,91" white on black OLED display
• 4x M5-30mm + 4x M5-16mm + 8x M5 nuts => tenting screws
• SK6812mini-E + WS2812 RGB LEDs (if selected option)

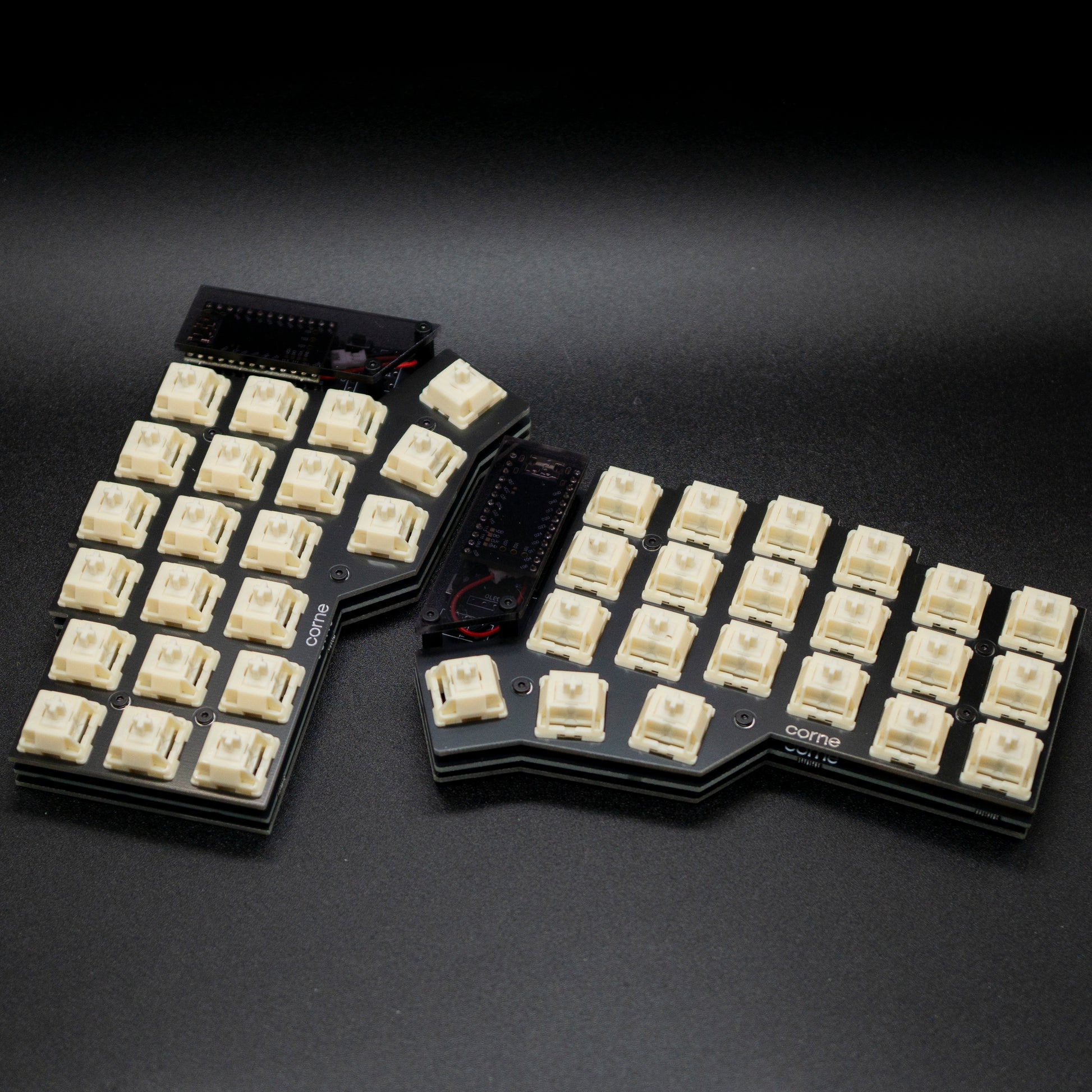

NRF52840 Wireless FR4:

• 2x PCB
• 2x FR4 plates
• 2x FR4 bottoms
• 10x 10mm brass M2 standoffs
• 20x 4mm M2 hex screws
• 42x Hot Swap Sockets
• 42x 1N4148W SMD diodes
• 2x Reset buttons
• 2x NRF52840 Microcontrollers (Bluetooth)
• 4x 12pin headers
• 2x female 2-pin JST (Battery)
• 2x male 2-pin JST soldered on board
• BATTERY NOT INCLUDED DUE TO SHIPPING LIMITATIONS
